   Power supply filters



Three phase noise filters

ID Part No. Rated Current, A Terminals Safety Compliance Picture
159448 YH10T4 10 M4 Screw terminals CE Three-phase noise filter, rated current 10 A, M4 Screw terminals, rated voltage 125/250VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159450 YH15T4 15 M4 Screw terminals CE Three-phase noise filter, rated current 15 A, M4 Screw terminals, rated voltage 125/250VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159452 YH20T4 20 M4 Screw terminals CE Three-phase noise filter, rated current 20 A, M4 Screw terminals, rated voltage 125/250VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159454 YH30T4 30 M4 Screw terminals CE Three-phase noise filter, rated current 30 A, M4 Screw terminals, rated voltage 125/250VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159449 YH10T4-1 10 M4 Screw terminals CE Three-phase noise filter, rated current 10 A, M4 Screw terminals, rated voltage 125/250VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159451 YH15T4-1 15 M4 Screw terminals CE Three-phase noise filter, rated current 15 A, M4 Screw terminals, rated voltage 125/250VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159453 YH20T4-1 20 M4 Screw terminals CE Three-phase noise filter, rated current 20 A, M4 Screw terminals, rated voltage 125/250VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159455 YH30T4-1 30 M4 Screw terminals CE Three-phase noise filter, rated current 30 A, M4 Screw terminals, rated voltage 125/250VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159456 YI40T7 40 M5 Screw terminals CE Three-phase noise filter, rated current 40 A, M5 Screw terminals, rated voltage 125/250VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159458 YI50T7 50 M5 Screw terminals CE Three-phase noise filter, rated current 50 A, M5 Screw terminals, rated voltage 125/250VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159460 YI60T7 60 M5 Screw terminals CE Three-phase noise filter, rated current 60 A, M5 Screw terminals, rated voltage 125/250VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159457 YI40T7-1 40 M5 Screw terminals CE Three-phase noise filter, rated current 40 A, M5 Screw terminals, rated voltage 250/500VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159459 YI50T7-1 50 M5 Screw terminals CE Three-phase noise filter, rated current 50 A, M5 Screw terminals, rated voltage 250/500VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159461 YI60T7-1 60 M5 Screw terminals CE Three-phase noise filter, rated current 60 A, M5 Screw terminals, rated voltage 250/500VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159504 YP60T8 60 M8 Screw terminals CE Three-phase noise filter, rated current 60 A, M8 Screw terminals, rated voltage 500VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159505 YP80T10 80 M10 Screw terminals CE Three-phase noise filter, rated current 80 A, M10 Screw terminals, rated voltage 500VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159500 YP100T10 100 M10 Screw terminals CE Three-phase noise filter, rated current 100 A, M10 Screw terminals, rated voltage 500VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159501 YP150T12 150 M12 Screw terminals CE Three-phase noise filter, rated current 150 A, M12 Screw terminals, rated voltage 500VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159502 YP200T12 200 M12 Screw terminals CE Three-phase noise filter, rated current 200 A, M12 Screw terminals, rated voltage 500VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
159503 YP250T12 250 M12 Screw terminals CE Three-phase noise filter, rated current 250 A, M12 Screw terminals, rated voltage 500VAC, operating frequency 50/60Hz, hipot rating (line-to-line) 1450VDC, hipot rating (line-to-ground) 2250VDC, operating temperature -25...+85°C, safety compliance CE
203919 YU07HD10 7 Terminal block HD10 --- Three-phase noise filter, rated current 7 A, Terminal block HD10, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203920 YU16HD10 16 Terminal block HD10 --- Three-phase noise filter, rated current 16 A, Terminal block HD10, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203921 YU30HD10 30 Terminal block HD10 --- Three-phase noise filter, rated current 30 A, Terminal block HD10, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203922 YU42HD50 42 Terminal block HD50 --- Three-phase noise filter, rated current 42 A, Terminal block HD50, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance

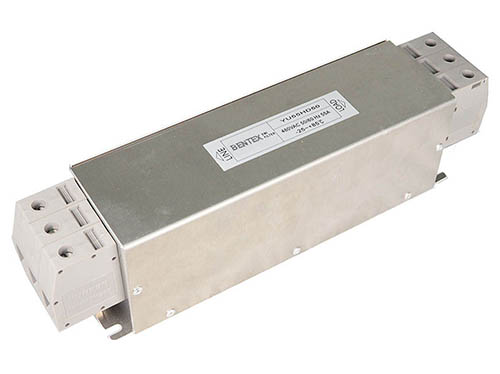

203923 YU55HD50 55 Terminal block HD50 --- Three-phase noise filter, rated current 55 A, Terminal block HD50, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203924 YU75HD50 75 Terminal block HD50 --- Three-phase noise filter, rated current 75 A, Terminal block HD50, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203925 YU100HD95 100 Terminal block HD95 --- Three-phase noise filter, rated current 100 A, Terminal block HD95, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203926 YU07TB10 7 Terminal block TB10 --- Three-phase noise filter, rated current 7 A, Terminal block TB10, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203927 YU16TB20 16 Terminal block TB20 --- Three-phase noise filter, rated current 16 A, Terminal block TB20, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203928 YU30TB30 30 Terminal block TB30 --- Three-phase noise filter, rated current 30 A, Terminal block TB30, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203929 YU42TB60 42 Terminal block TB60 --- Three-phase noise filter, rated current 42 A, Terminal block TB60, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203930 YU55TB60 55 Terminal block TB60 --- Three-phase noise filter, rated current 55 A, Terminal block TB60, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203931 YU75TB80 75 Terminal block TB80 --- Three-phase noise filter, rated current 75 A, Terminal block TB80, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
203932 YU100TB100 100 Terminal block TB100 --- Three-phase noise filter, rated current 100 A, Terminal block TB100, rated voltage 480VAC, operating frequency 50/60Hz, hipot rating (line-to-line) , hipot rating (line-to-ground) , operating temperature -25...+85°C, safety compliance
